SR5K100V25R

Availability: Out Of Stock - 14 Weeks ARO

Dynamic shunt regulator 5kW Max, 200W Cont, 120V Max, 2.5 Ohm

$205.00
Availability: Out Of Stock - 14 Weeks ARO
Status :
Active

Documentation

#NameVersionSize
1SR5K100V25R Datasheet

v1.0, 7 July, 2022

844.39 KB

All Documentation

Files

#NameVersionSize
1SR5K100V25R.STEP29.45 MB

DESCRIPTION

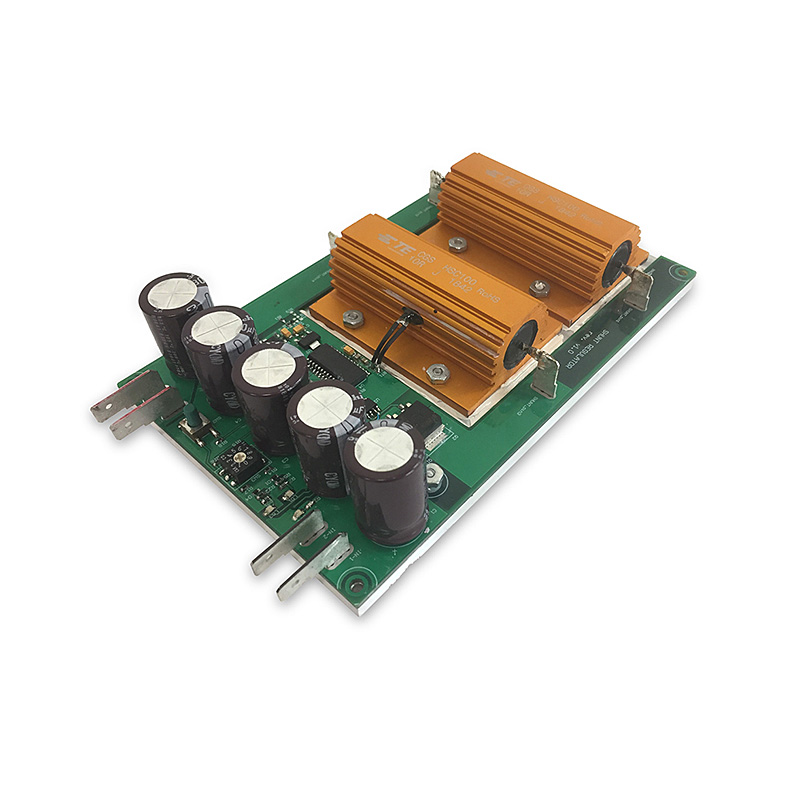

The SR100V5 Shunt Regulator is a protection subsystem for dissipating the regenerative energy when braking or drastically reducing the speed of electric motors. The SR100V5 has been designed to work in conjunction with a wide variety of power sources and motor controllers. During braking, the regenerative voltage can equal to or even exceed the supply voltage in some cases depending on the rotational inertia of the mechanical system, causing system failures or permanent damage to the power supply or/and the motor controller. The SR100V5 works by monitoring the system’s supply’s voltage and instantly applying a two-level resistive load during overvoltage conditions to absorb up to 5 kilowatts of excess energy and bring voltages back to safe levels.
