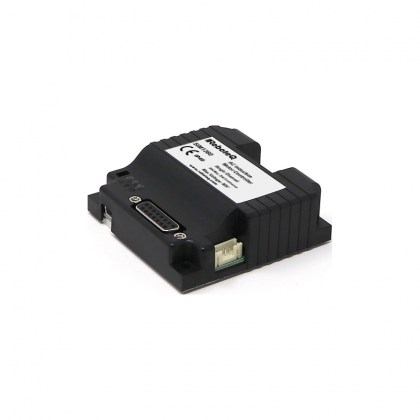

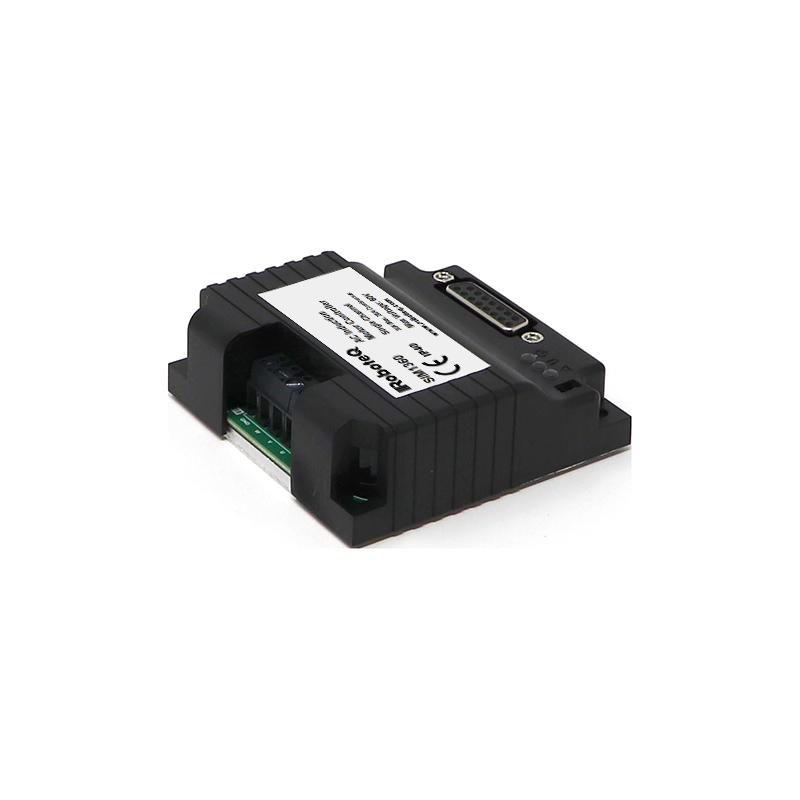

SIM1360

AC Induction Motor Controller, Single Channel, 1 x 30A, 60V, Encoder input, USB, CAN, FOC, 6 Dig/Ana IO, Cooling plate with ABS cover

$275.00
Availability: Mid January

Documentation

#NameVersionSize
1SIM13xx Datasheet Locked by Bhavnish 7 months ago

Version 1.1 June 27, 2019

501.77 KB
#NameVersionSize
1Roboteq Controllers User Manual v2.0

v.2.0, July 23, 2019

v 2.0, May 20, 2020 (Page number references changed on page 81)

6.01 MB

All Documentation

Files

#NameVersionSize
1Roborun+ PC Utility

v2.1 September 30, 2020

35.24 MB
#NameVersionSize
1SIM1XXX Overall Firmware

v.2.01, November 14, 2019

153.26 KB
#NameVersionSize
1SIM1x step3d1.68 MB

All Files

Family
Motor Type
AC Induction
Power
Max Voltage
60
Number of Channels
1
Max Amps per Channel
30
Continuous Amps per Channel
20
Power Connections
Screw Terminals
Field Oriented Control (FOC)
Yes
Communication
RS232
Yes
RS485
No
USB
Yes
CANbus
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
6
Max Digital Inputs
6
Max Digital Outputs
2
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(70mm x 70mm x 27mm)
Weight
96g
