GDCG3660TE
Availability: In Stock

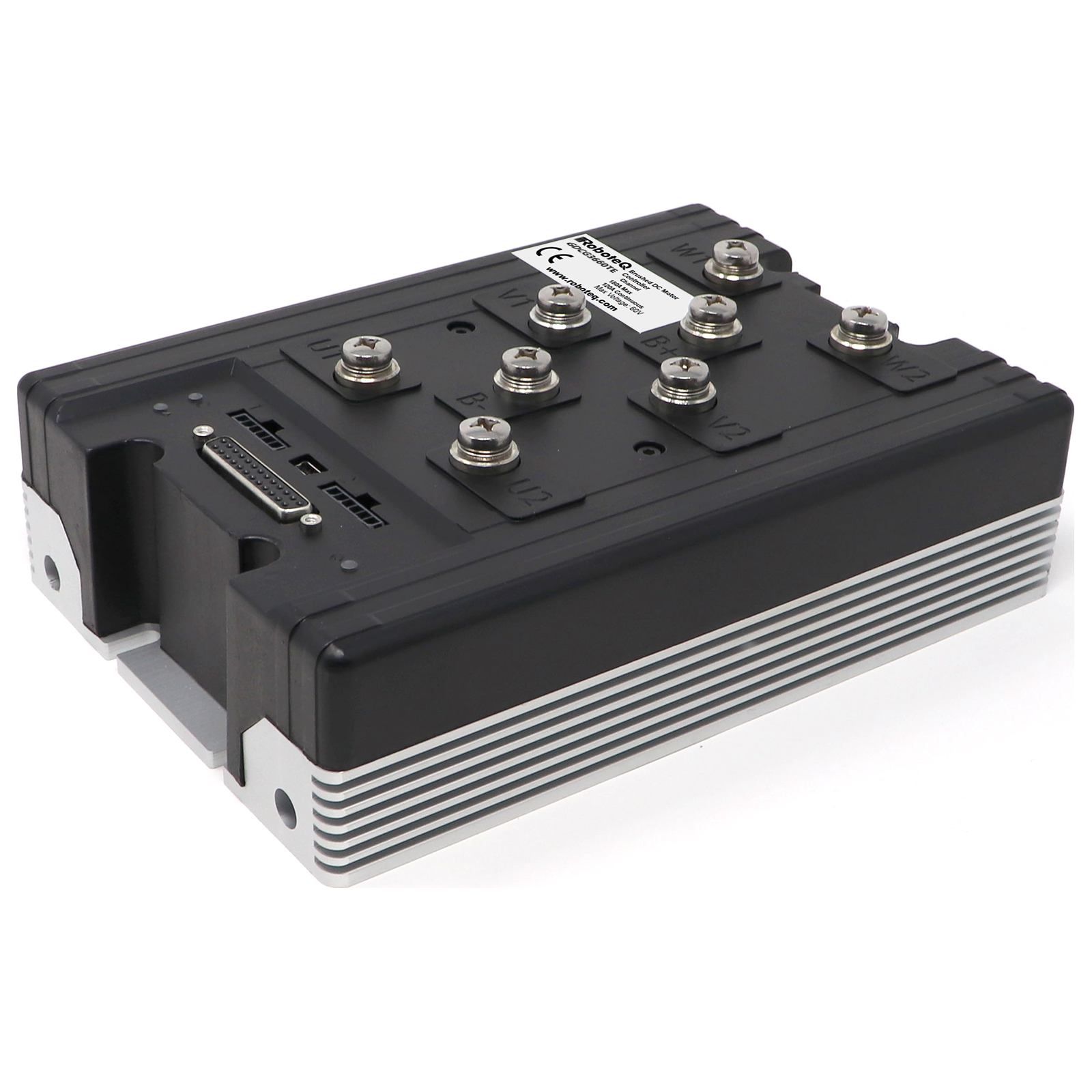

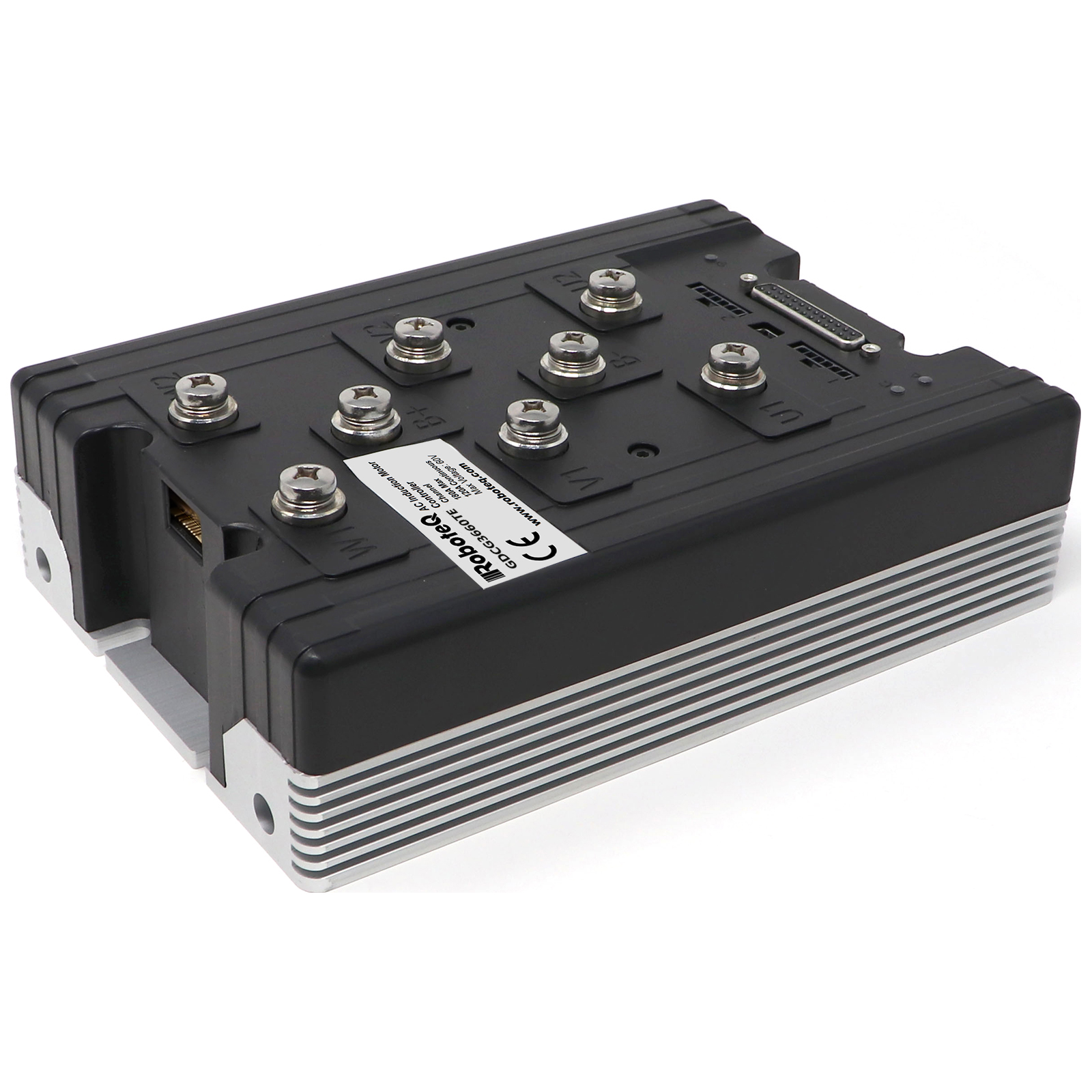

RoboG4TM Brushed DC Motor Controller, Triple Channel, 3 x 120 A continuous, 3 x 180 A Peak (30s), 60V, Encoder input, USB, CAN, Ethernet
$1,360.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  GDCG36xx datasheet | v 1.0, Feb 11, 2026 | 1004.19 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.2 | v3.2 December 16, 2025 | 13.5 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ Utility User Manual v3.2 | 5.56 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  GDCG3XXX Firmware Update v3.2c | v.3.2c, April 2, 2026 | 318.19 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | GDC3x step3d | 5.67 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roborun+ Utility User Manual v3.2 | 5.56 MB |
Family
Motor Type
Brushed DC
Power
Max Voltage
60
Design Generation
Gen3
Number of Channels
3
Max Amps per Channel
180
Continuous Amps per Channel
120
Power Connections
Power Terminals
Communication
RS232
Yes
RS485
Yes
USB
Yes
Ethernet
Yes
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(140mm x 140mm x 25mm)
Weight
2940g
