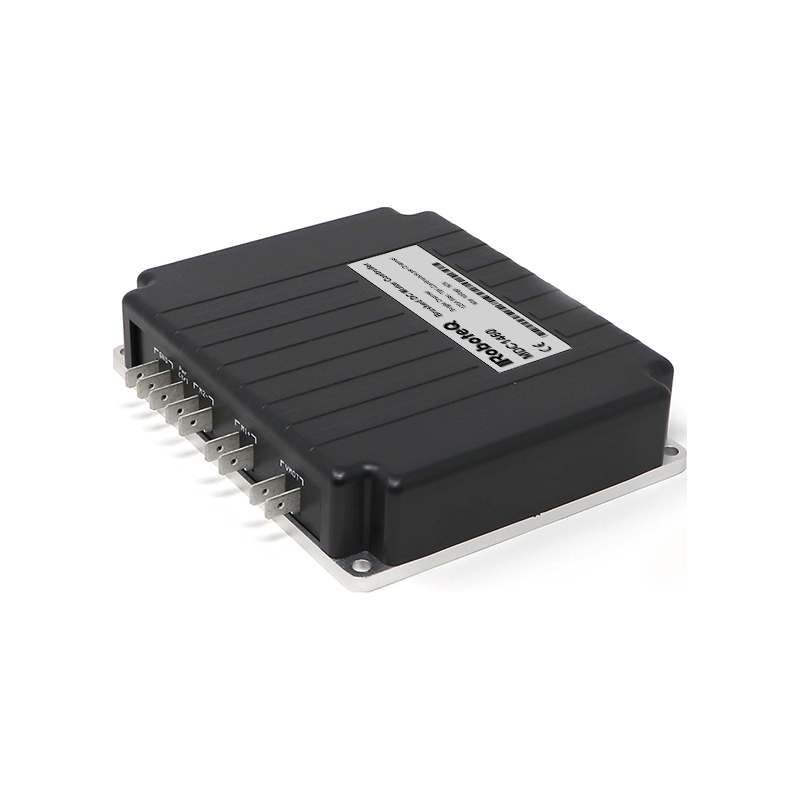

MDC1460

Brushed DC Motor Controller, Single Channel, 1 x 120A, 60V, USB, CAN, 8 Dig/Ana IO, Cooling plate with ABS cover

$295.00
Availability: In Stock

Documentation

#NameVersionSize
1MDC1xxx Datasheet Locked by Bhavnish 2 years ago

v.1.4, updated September 14, 2018

530.05 KB
#NameVersionSize
1Roboteq Controllers User Manual v2.1

v.2.1, December 28, 2020



5.65 MB

All Documentation

Files

#NameVersionSize
1Roborun+ PC Utility

v2.1 December 22, 2020

34.78 MB
#NameVersionSize
1MDC14XX Firmware

v.2.0, June 19, 2019

144.93 KB
#NameVersionSize
1MDC1x-step3d107.42 KB

All Files

Family
Motor Type
Brushed DC
Power
Max Voltage
60
Number of Channels
1
Max Amps per Channel
120
Continuous Amps per Channel
70
Power Connections
Fast on
Communication
RS232
Yes
RS485
No
USB
Yes
CANbus
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
4
Max Digital Inputs
6
Max Digital Outputs
2
Max Pulse Inputs
5
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(120mm x 133mm x 25mm)
Weight
380g
