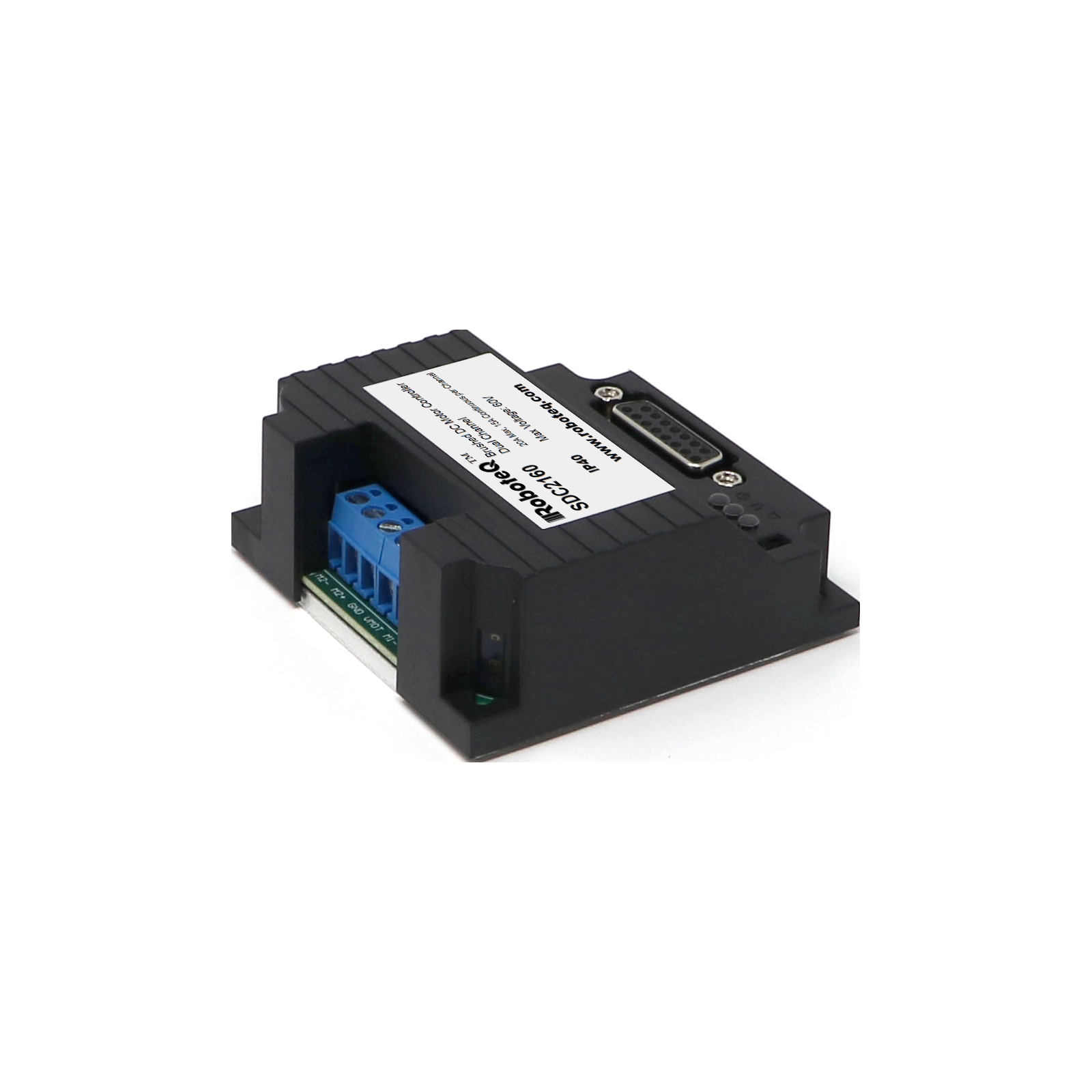

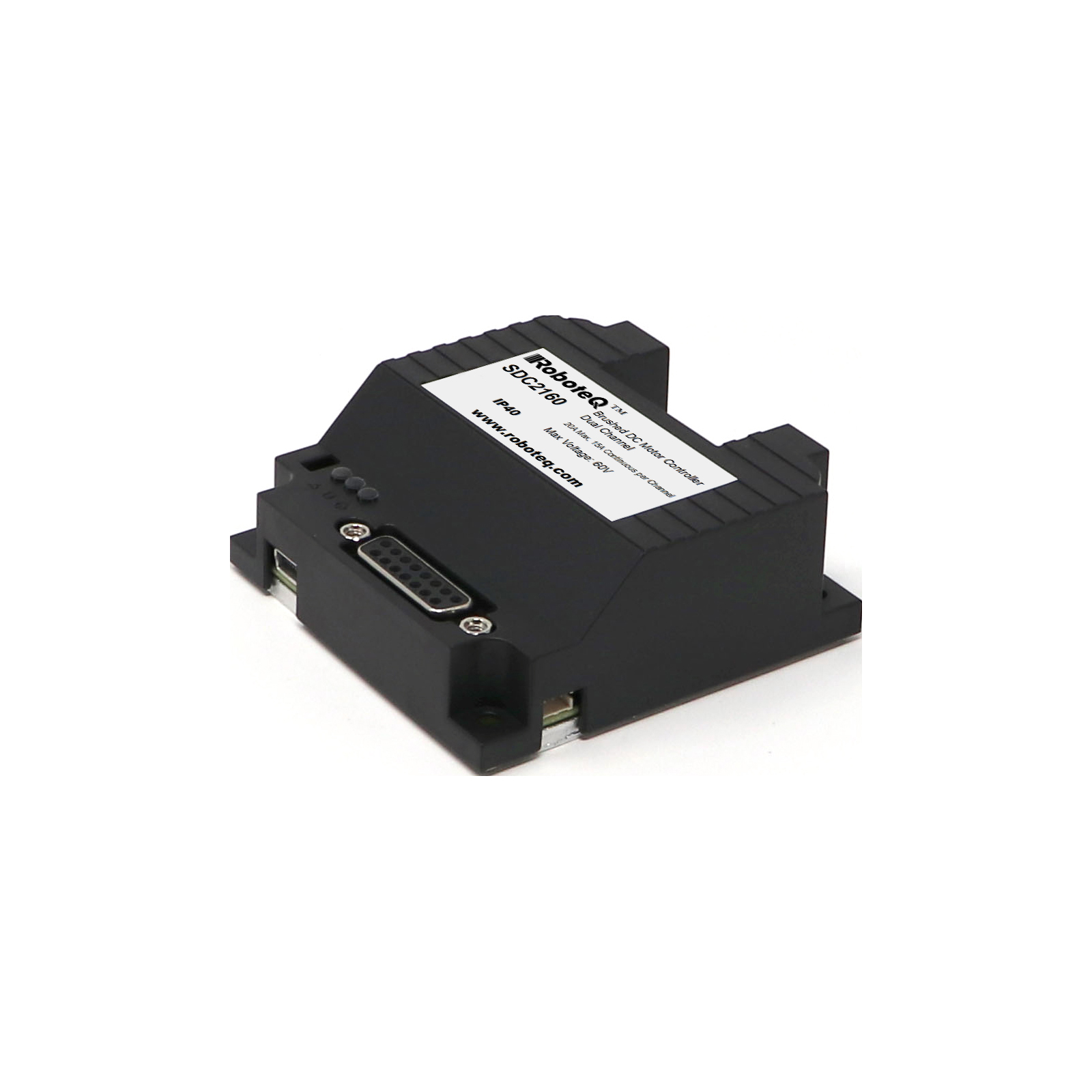

SDC2160
Availability: In Stock
Brushed DC Motor Controller, Dual Channel, 2 x 15 A Continuous, 2 x 20 A Peak (30 s), 60V, USB, CAN, 8 Dig/Ana IO, Cooling plate with ABS cover.
Please Note, this product is not CE compliant.
$350.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  SDC21xx Datasheet | v.2.3, July 10, 2025 | 711.96 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v2.1 | v.2.1, Mar 22, 2022 | 5.65 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  SDC21XX Firmware v2.1d | v.2.1d, June 13, 2024 | 208.82 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | SDC2x step3d | 1.57 MB |
Family
Motor Type
Brushed DC
Power
Max Voltage
60
Design Generation
Gen3
Number of Channels
2
Max Amps per Channel
20
Continuous Amps per Channel
15
Power Connections
Screw Terminals
Communication
RS232
Yes
RS485
No
USB
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
4
Max Digital Inputs
6
Max Digital Outputs
2
Max Pulse Inputs
5
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(70mm x 70mm x20mm)
Weight
120g
