FBLG2360TES

Sampling
Contact Us

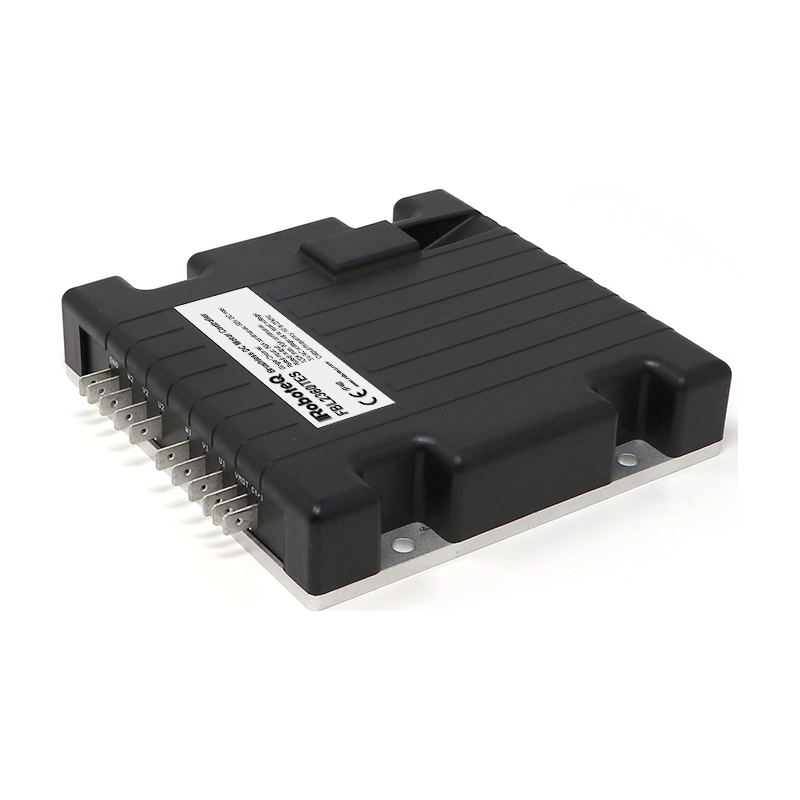

Gen 4 Brushless DC Motor Controller, Single Channel, 1 x 120A, 60V, USB, CAN, Trapezoidal/Sinusoidal, FOC, 14 Dig/Ana IO, Resolver/SSI, Ethernet, Conduction Cooling plate, STO PLe, Cat3, SIL3 (pending)

$915.00
Availability: Out Of Stock - Contact Us
Status :
Sampling

Documentation

#NameVersionSize
1FBLG23xx Datasheet

v.1.0, June 23, 2022

658.7 KB
#NameVersionSize
1Roboteq Controllers User Manual v2.1

v.2.1, Mar 22, 2022



5.65 MB

Files

#NameVersionSize
1Roborun+ PC Utility

v2.1 December 22, 2020

34.78 MB
#NameVersionSize
1FBL2xE-step3d2.41 MB
Family
Motor Type
Brushless DC
Power
Max Voltage
60
Design Generation
Gen4
Number of Channels
1
Max Amps per Channel
120
Continuous Amps per Channel
80
Power Connections
Fast on
Field Oriented Control (FOC)
Yes
Commutation
Trapezoidal
Yes
Sinusoidal
Yes
Communication
RS232
Yes
RS485
Yes
USB
Yes
CANbus
Yes
Ethernet
Yes
Rotor Sensor
Encoder
Yes
Hall
Yes
Sin/Cos
Yes
SSI
Yes
SPI
No
Resolver
Yes
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(140mm x 140mm x 25mm)
Weight
452g
