GBLG2660TES
Availability: In Stock to 8 Weeks ARO

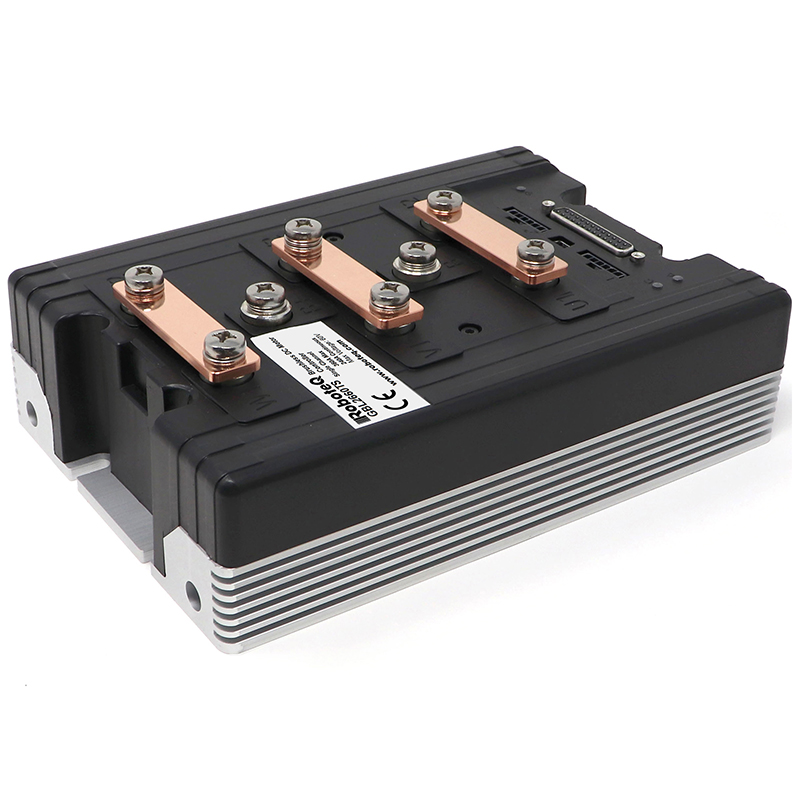

Gen 4 Brushless DC Motor Controller, Single Channel, 1 x 360A, 60V, Hall sensors input, Encoder input, USB, CAN, Ethernet, STO PLe, Cat3, SIL3
$1,195.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  GBLG26xx datasheet | 651.08 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v2.1 | v.2.1, Mar 22, 2022
| 5.65 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  Roborun+ PC Utility | v2.1 December 22, 2020 | 34.78 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | GBL2xS-step3d | 5.33 MB |
Family
Motor Type
Brushless DC
Power
Max Voltage
60
Number of Channels
1
Design Generation
Gen4
Max Amps per Channel
360
Continuous Amps per Channel
240
Power Connections
Power Terminals
Field Oriented Control (FOC)
Yes
Commutation
Trapezoidal
Yes
Sinusoidal
Yes
Communication
RS232
Yes
RS485
Yes
USB
Yes
CANbus
Yes
Ethernet
Yes
Rotor Sensor
Encoder
Yes
Hall
Yes
Sin/Cos
Yes
SSI
Yes
SPI
No
Resolver
Yes
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(145mmx 209mm x 59mm)
Weight
2484g
