KBL1660
Availability: In Stock

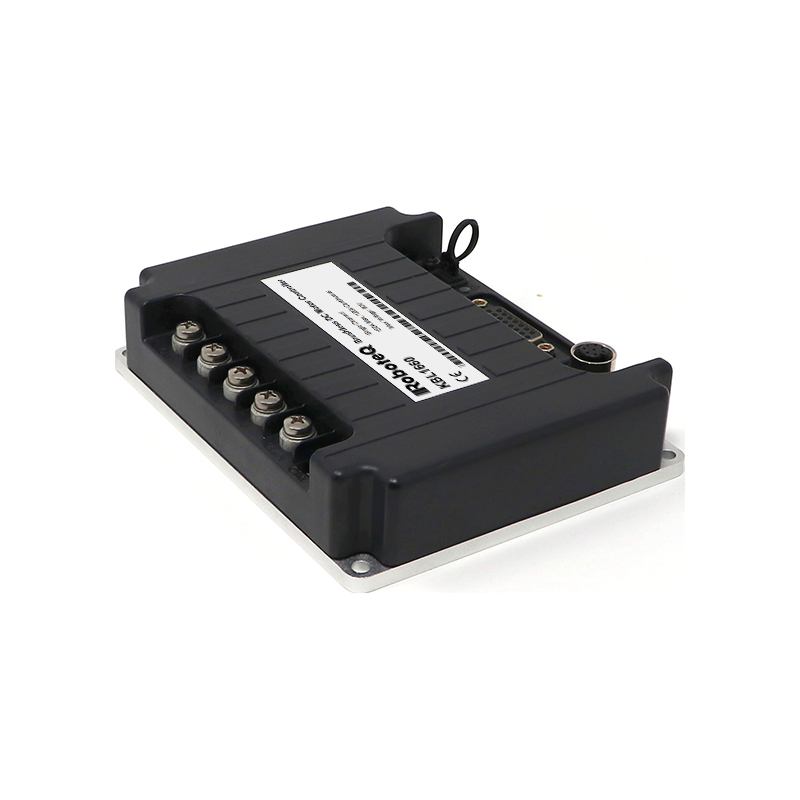

Brushless DC Motor Controller, IP54 dustproof water-tight, Single Channel, 1 x 120A, 60V, USB, CAN, Trapezoidal/Sinusoidal, FOC, 8 Dig/Ana IO, Cooling plate with ABS cover
$645.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  KBL1xxx Datasheet | v1.9 June 23, 2022 | 951.66 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v2.1 Locked by Petros 2 months ago | v.2.1, Mar 22, 2022
| 5.65 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  Roborun+ PC Utility | v2.1 December 22, 2020 | 34.78 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | KBL1XXX Firmware v2 1 | 245.76 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | KBL1x-step3d | 2.59 MB |
Family
Motor Type
Brushless DC
Power
Max Voltage
60
Design Generation
Gen3
Number of Channels
1
Max Amps per Channel
120
Continuous Amps per Channel
100
Power Connections
Power Terminals
Field Oriented Control (FOC)
Yes
Commutation
Trapezoidal
Yes
Sinusoidal
Yes
Communication
RS232
Yes
RS485
Yes
USB
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Hall
Yes
Sin/Cos
Yes
SSI
Yes
SPI
No
Resolver
Yes
Input/Outputs
Max Analog Inputs
6
Max Digital Inputs
6
Max Digital Outputs
2
Max Pulse Inputs
6
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(140mm x 113mm x 20mm)
Weight
380g
