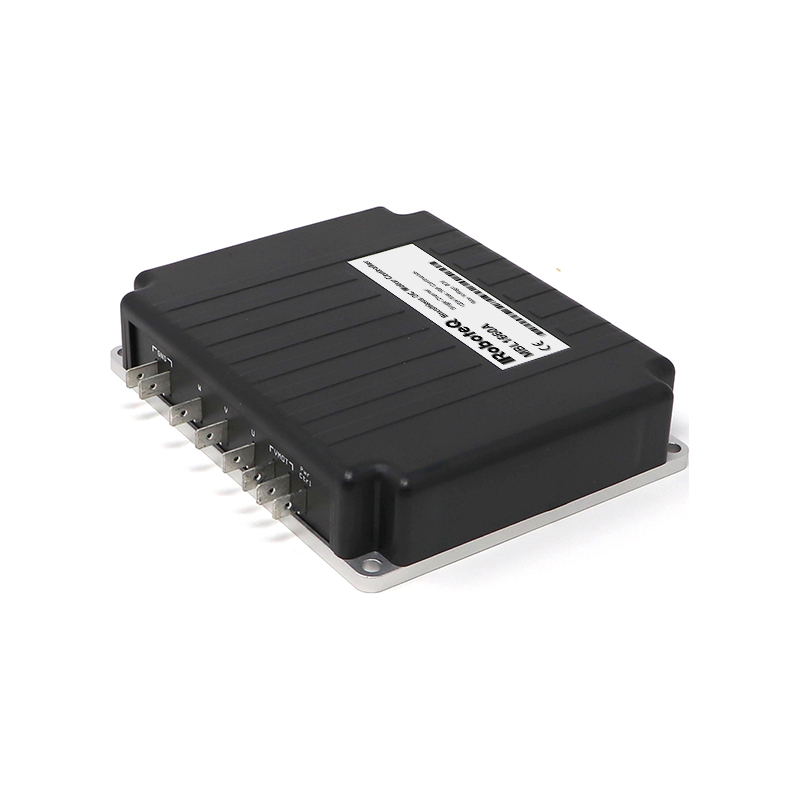

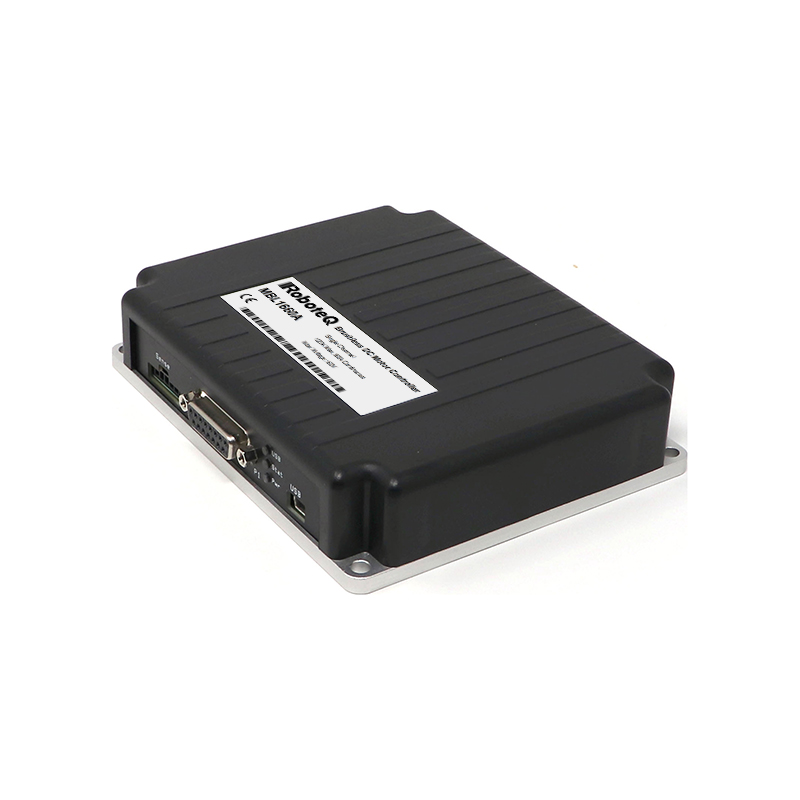

MBL1660A
Availability: Out Of Stock - 12 Weeks ARO
Brushless DC Motor Controller, Single Channel, 1 x 120A, 60V, USB, CAN, Trapezoidal/Sinusoidal, FOC, 8 Dig/Ana IO, Cooling plate with ABS cover
$460.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  MBL1xxx datasheet | Version 1.0, June 23, 2022 | 696.37 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v2.1 | v.2.1, Mar 22, 2022
| 5.65 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  Roborun+ PC Utility | v2.1 December 22, 2020 | 34.78 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | MBL1XXXA Firmware v2.1 | 241.6 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | MBL1x-step3d | 107.42 KB |
Family
Motor Type
Brushless DC
Power
Design Generation
Gen3
Max Voltage
60
Number of Channels
1
Max Amps per Channel
120
Continuous Amps per Channel
80
Power Connections
Fast on
Field Oriented Control (FOC)
Yes
Commutation
Trapezoidal
Yes
Sinusoidal
Yes
Communication
RS232
Yes
RS485
No
USB
Yes
CANbus
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Hall
Yes
Sin/Cos
No
SSI
No
SPI
No
Resolver
No
Input/Outputs
Max Analog Inputs
4
Max Digital Inputs
6
Max Digital Outputs
2
Max Pulse Inputs
5
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(140mm x 113mm x 20mm)
Weight
380g
