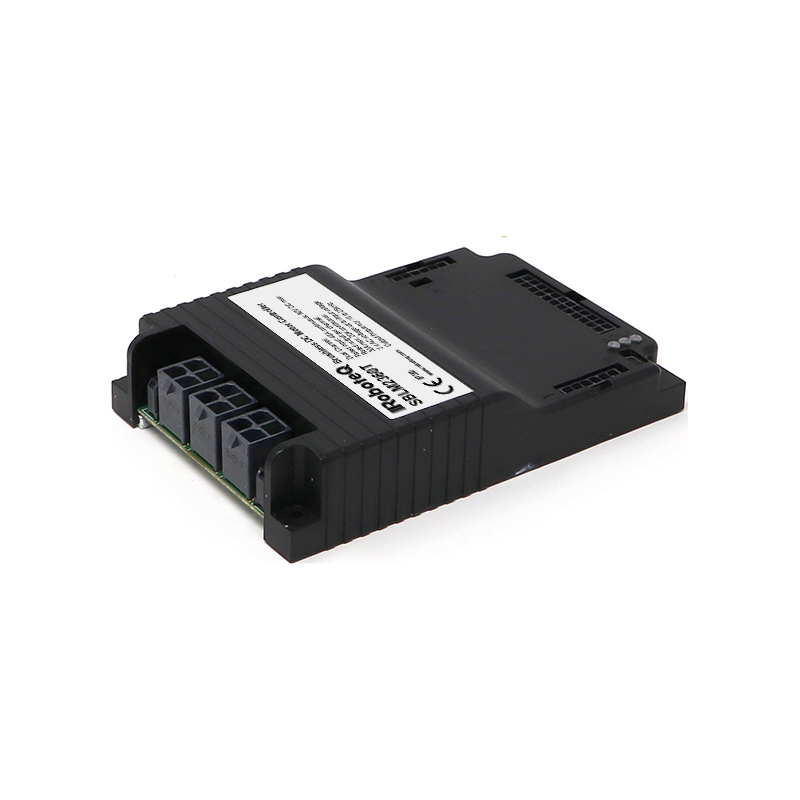

SBLMG2360TS
Availability: In Stock
Gen 4 Brushless DC Motor Controller, Single Channel, 1 x 60A, 60V, USB, CAN, Trapezoidal/Sinusoidal, FOC, 14 Dig/Ana IO, Molex Connectors, Conduction Cooling plate, STO PLe, Cat3, SIL3 (pending)
$640.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  SBLM23xx datasheet | v1.2 Sep 12, 2022 | 980.64 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v2.1 Locked by Petros 2 months ago | v.2.1, Mar 22, 2022
| 5.65 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  Roborun+ PC Utility | v2.1 December 22, 2020 | 34.78 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | SBLM2x-step3d | 2.87 MB |
Family
Motor Type
Brushless DC
Power
Max Voltage
60
Design Generation
Gen4
Number of Channels
1
Max Amps per Channel
60
Continuous Amps per Channel
40
Power Connections
Screw Terminals
Field Oriented Control (FOC)
Yes
Commutation
Trapezoidal
Yes
Sinusoidal
Yes
Communication
RS232
Yes
RS485
Yes
USB
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Hall
Yes
Sin/Cos
Yes
SSI
Yes
SPI
No
Resolver
No
Input/Outputs
Max Analog Inputs
8
Max Digital Inputs
10
Max Digital Outputs
4
Max Pulse Inputs
8
Functional Safety
Safe Torque Off (STO)
Yes
Mechanical
Cooling
Conduction plate
Dimensions
(123mm x 83 m x 25mm)
Weight
215g
