AGV089A01G

Availability: Out Of Stock - 10 to 12 Weeks ARO

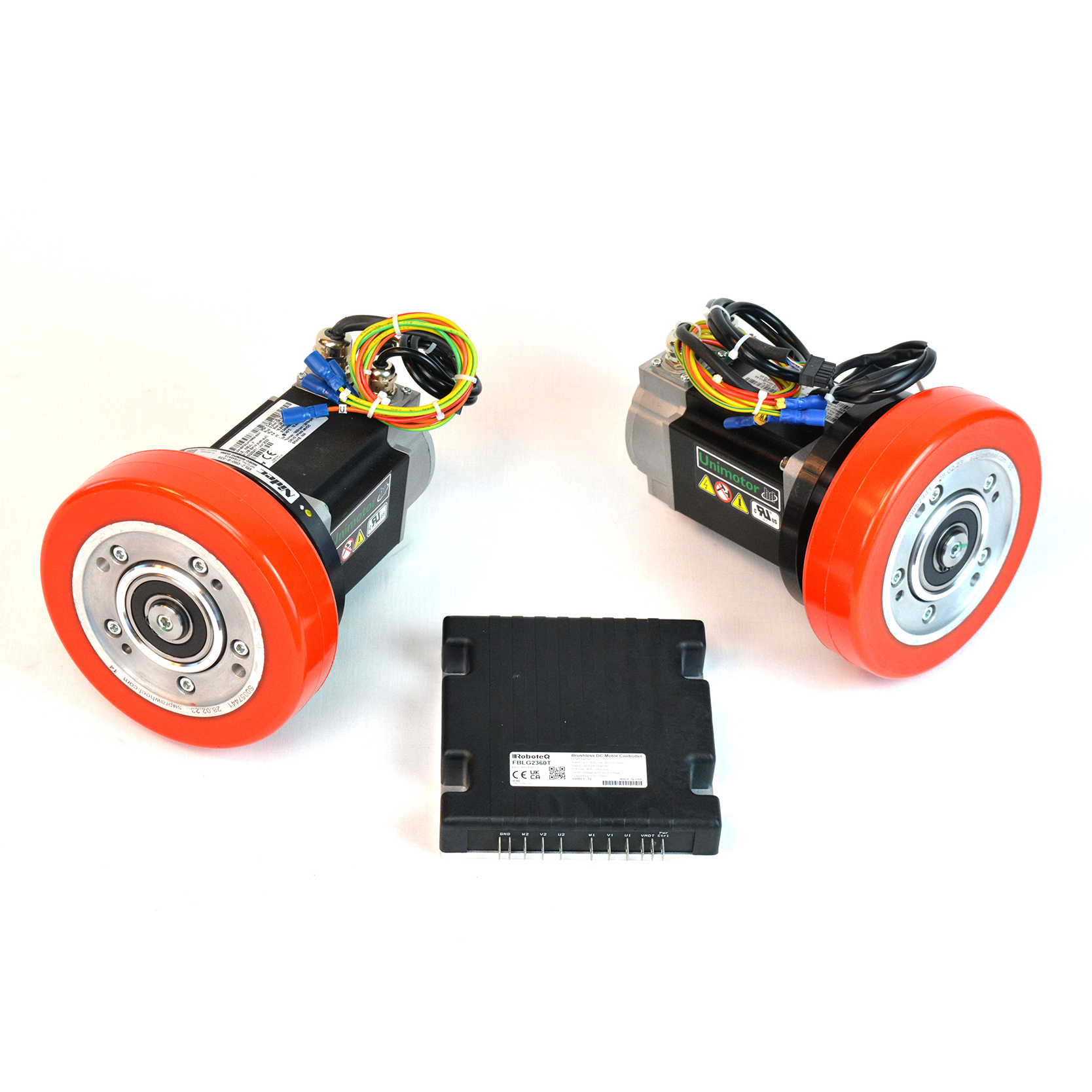

AGV kit including two 89mm 48 V Frame Motors, Gearbox, and Wheel Assembly for 1000kg Mobile Robot up to 3000 RPM, without Brake, with FBLG2360T motor controller and Double motor sensor connection cable.

The kit includes:

• 1 x FBLG2360T drive
• 2 x 089LDA300ROB motors
• 1 x Double motor sensor connection cable

Note: The product image is for illustrative purposes only. The actual product may differ slightly.

Note: Product is EOL – Not recommended for new designs

$3,150.00
Availability: Out Of Stock - 10 to 12 Weeks ARO
Status :
Active
Back to: Drive Systems Solutions

Documentation

#NameVersionSize
1FBLG23xx Datasheet

v 1.1, Feb 11, 2026

790.3 KB
#NameVersionSize
1AGV Kit Quick Start Guide777.94 KB
#NameVersionSize
1Roboteq Controllers User Manual v3.0c

v3.0c December 16, 2025

10.07 MB
#NameVersionSize
1089LDA300ROB Datasheet

v 1.0, February 27, 2024

419.93 KB
#NameVersionSize
1AGV Products Brochure14.2 MB
All Documentation

Files



#NameVersionSize
1FBL2x-step3d1.51 MB
#NameVersionSize
1089 Motor 3D Model No Brake962.67 KB
#NameVersionSize
1AGV089A01G profile6.74 KB

All Files

Motor
Motor Frame Size (mm)
89
Motor Dimensions (WxHxL mm)
91x91x160.8
Max robot weight (kg)
1000
Brake
No
Max Motor Speed (RPM)
3000
Gear Ratio
9:1
Wheel diameter (mm)
156,4
Max Robot Speed (m/s)
2.72
Voltage (Vdc)
48
Nominal Amps (Arms)
15
Max Amps (Arms)
60
Torque at motor (Nm)
3,2
Output Torque (Nm)
29
Motor Shaft Encoder (PPR)
4096
Number of Pole Pairs
10
Assembly Weight (kg)
8.1
Communication
Ethernet
No
