AGV089A01G-E
Availability: In Stock

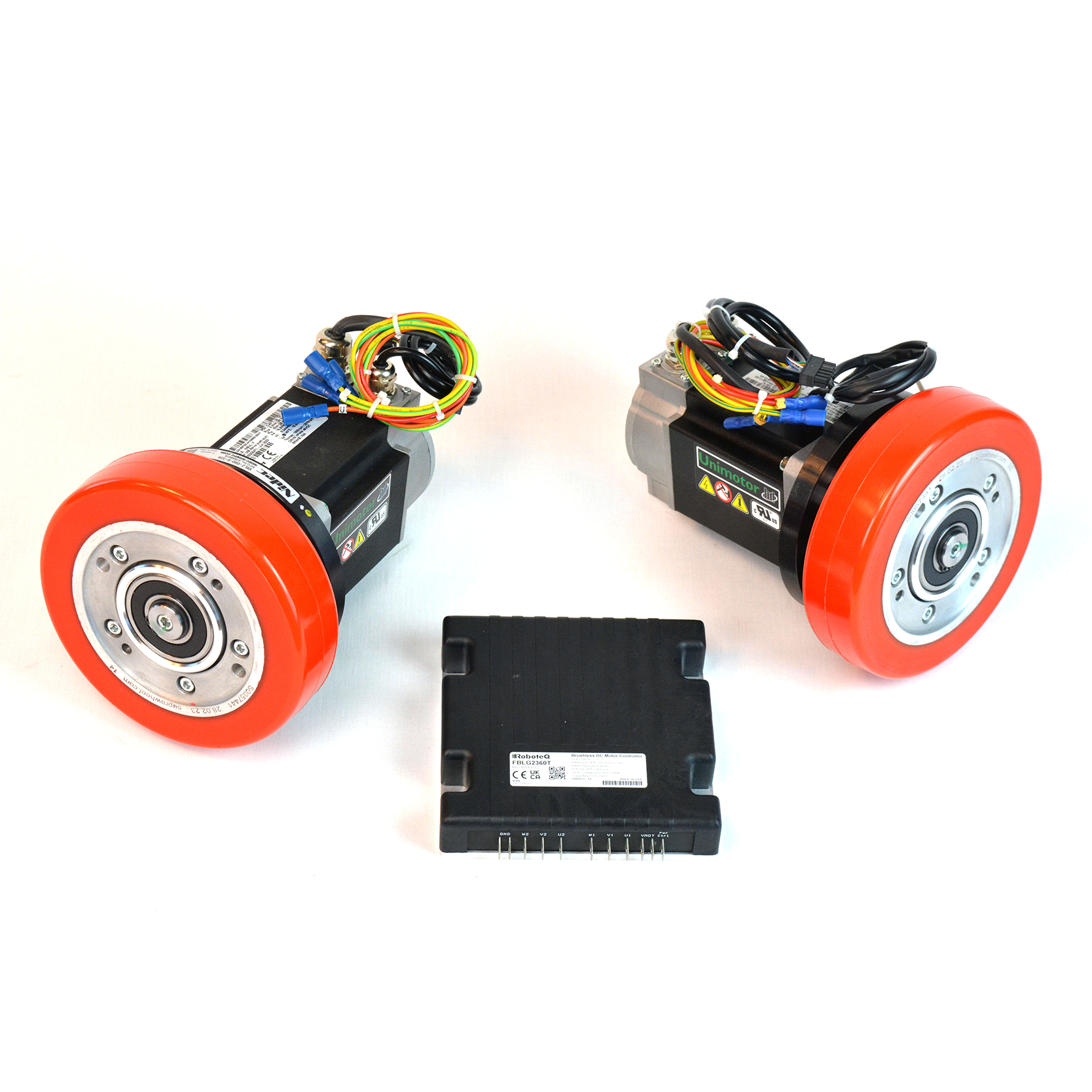

AGV kit including two 89mm 48V Frame Motors, Gearbox, and Wheel Assembly for 1000kg Mobile Robot up to 3000 RPM, without Brake, with FBLG2360TE Ethernet motor controller.
$3,180.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  FBLG23xx Datasheet | v.1.0, June 23, 2022 | 658.7 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | 089LDA300ROB Datasheet | 591.89 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | AGV Kit Quick Start Guide | 367.95 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v3.0 | V3.0, July 10, 2022 | 8.67 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | STO Certification Locked by centiva 2 months ago | 1.04 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  Roborun+ PC Utility v3.0beta | v3.0 Beta March 30, 2023 | 50.02 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | FBL2x-step3d | 1.51 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | 089 Motor 3D Model No Brake | 962.67 KB |
Motor
Motor Frame Size
89
Motor Dimensions (WxHxL mm)
91x91x160.8
Max robot weight (kg)
1000
Brake
No
Max Motor Speed (RPM)
3000
Gear Ratio
9:1
Wheel diameter (mm)
156,4
Max Robot Speed (m/s)
6
Voltage (Vdc)
24
Nominal Amps (Arms)
15
Max Amps (Arms)
60
Torque at Motor (Nm)
3,2
Torque at Wheel (Nm)
29
Motor Shaft Encoder (PPR)
4096
Number of Pole Pairs
10
Assembly Weight (kg)
8.1
Communication
Ethernet
Yes
