060LDB300ROB
Availability: In Stock

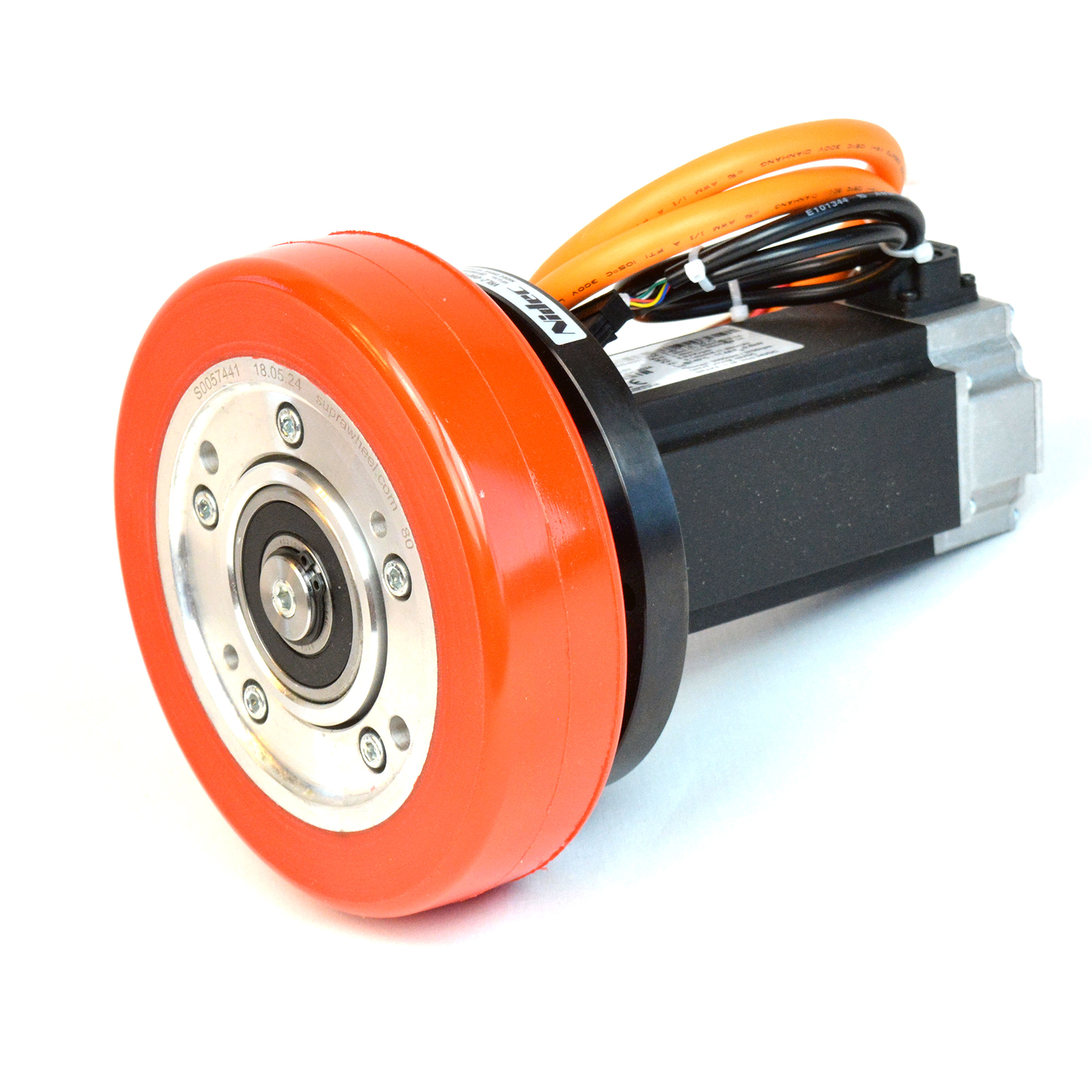

60mm Frame Motor, 9:1 Gearbox and Wheel Assembly for 500kg Mobile Robot. No brake.
Note: The product image is for illustrative purposes only. The actual product may differ slightly.
Note: Product is EOL – Not recommended for new designs.
$1,250.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  060LDB300ROB Datasheet | v 1.0, February 18, 2025 | 540.51 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  060LDB AVG WH_Step | 3.88 MB |
Motor
Motor Frame Size (mm)
60
Motor Dimensions (WxHxL mm)
60x60x170
Max robot weight (kg)
500
Brake
No
Max Motor Speed (RPM)
3000
Gear Ratio
9:1
Wheel diameter (mm)
156.4
Max Robot Speed (m/s)
2.72
Voltage (Vdc)
48
Nominal Amps (Arms)
9.2
Max Amps (Arms)
40
Torque at motor (Nm)
1.28
Output Torque (Nm)
11.52
Motor Shaft Encoder (PPR)
4096
Number of Pole Pairs
5
Assembly Weight (kg)
