089LDA150ROB
Availability: In Stock

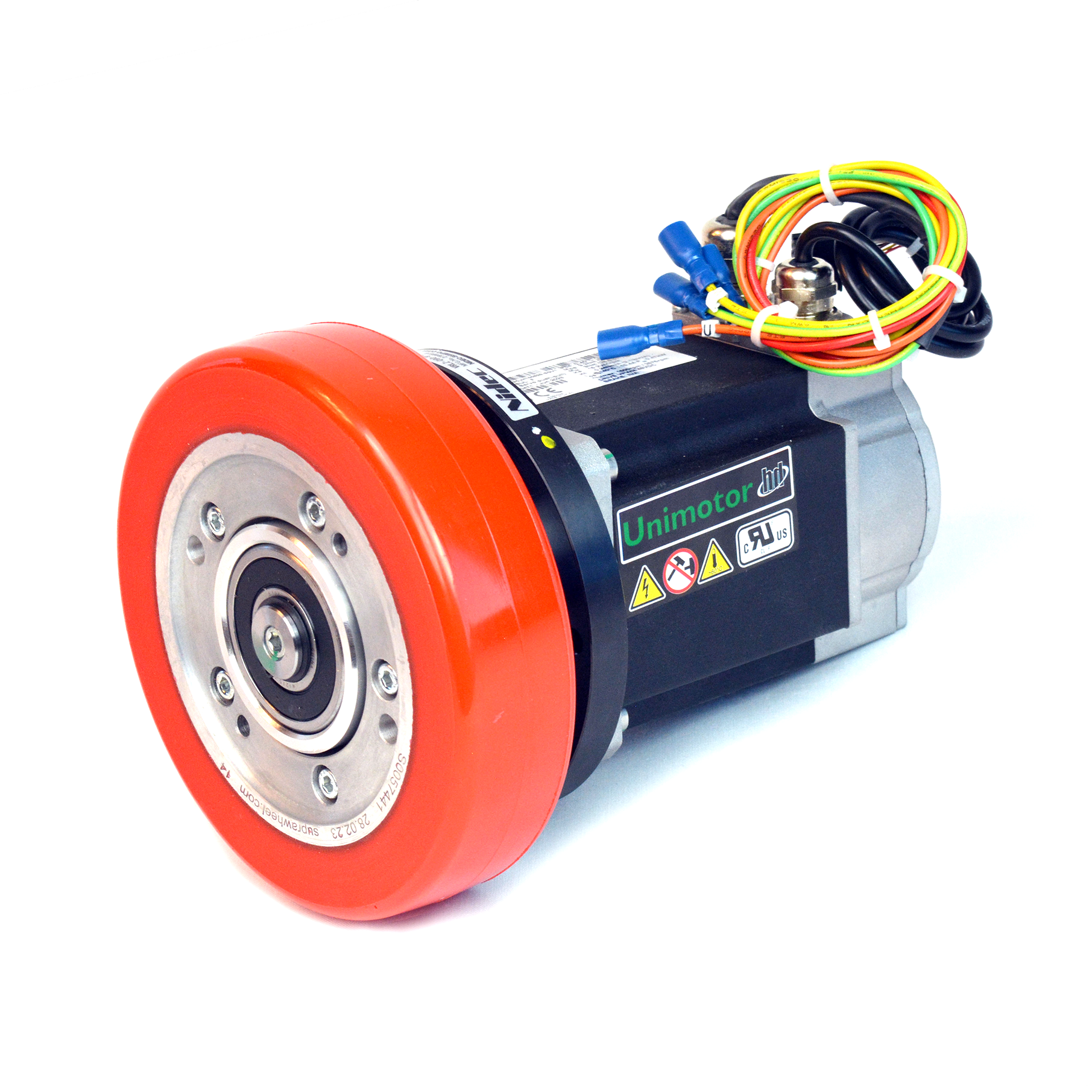

48VDC 89mm Frame Motor, Gearbox, and Wheel Assembly for 1000kg Mobile Robot, No Brake.
Note: The product image is for illustrative purposes only. The actual product may differ slightly.
Note: Product is EOL – Not recommended for new designs.
$1,450.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  089LDA150ROB Datasheet | v 1.0, August 31, 2023 | 410.86 KB |
Motor
Motor Frame Size (mm)
89
Motor Dimensions (WxHxL mm)
89x89x205
Max robot weight (kg)
1000
Brake
No
Max Motor Speed (RPM)
1500
Gear Ratio
9:1
Wheel diameter (mm)
156.4
Max Robot Speed (m/s)
1.36
Voltage (Vdc)
48
Nominal Amps (Arms)
12.7
Max Amps (Arms)
60
Torque at motor (Nm)
3.2
Output Torque (Nm)
28.8
Motor Shaft Encoder (PPR)
4096
Number of Pole Pairs
5
Assembly Weight (kg)
8.1
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  089LDA_UNbraked_SGV1_Step | 4.08 MB |
