142LDA200ROB
Availability: In Stock

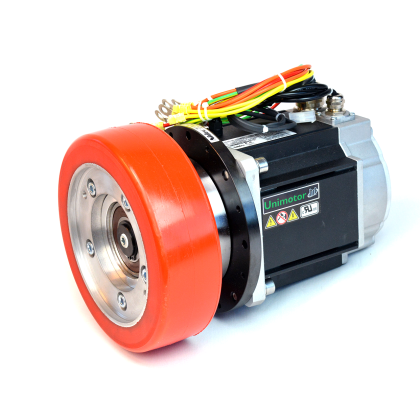

48VDC 142mm Frame Motor, Gearbox, and Wheel Assembly for 2000kg Mobile Robot, No Brake.
Note: The product image is for illustrative purposes only. The actual product may differ slightly.
Note: Product is EOL – Not recommended for new designs.
$1,985.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  142LDA200ROB Datasheet | v 1.0, June 13, 2025 | 486.21 KB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  142LDA_AGV_WH_Step | 6.78 MB |
Motor
Motor Frame Size (mm)
142
Motor Dimensions (WxHxL mm)
142x142x265
Max robot weight (kg)
2000
Brake
No
Max Motor Speed (RPM)
2000
Gear Ratio
9:1
Wheel diameter (mm)
202
Max Robot Speed (m/s)
2.35
Voltage (Vdc)
48
Nominal Amps (Arms)
41.1
Max Amps (Arms)
44
Torque at motor (Nm)
8.6
Output Torque (Nm)
77.4
Motor Shaft Encoder (PPR)
4096
Number of Pole Pairs
5
Assembly Weight (kg)
15
