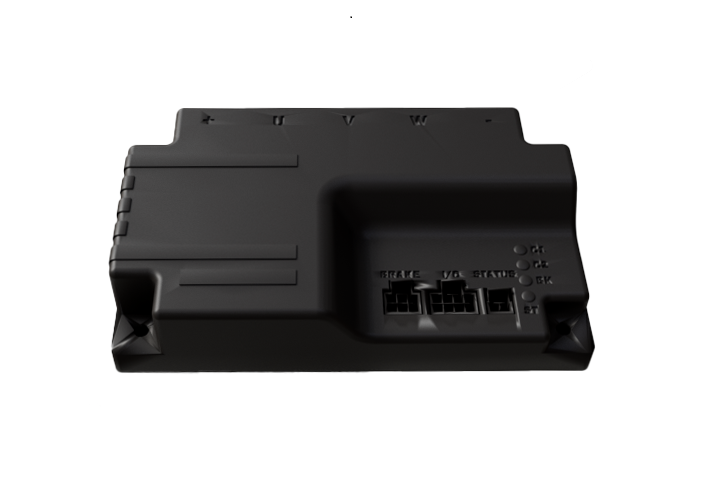

SBSM1360V-M1000
Availability: In Stock
The SBSM1360V-M1000 is a component for 3-phase BLDC motors, designed to reduce braking distances by shorting motor phases when the Safe Torque Off (STO) is activated in the motor drive. It features a right-angle Molex connector and is rated for 100A braking, 20A continuous, and 30A peak currents at 60V. SBS complies with ISO 13849-1, falling under Category 3, Performance Level d, ensuring robust functionality and system safety even in the event of a single fault.
$315.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  SBS Datasheet Locked by Petros 2 years ago | 403.56 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | SBS Product Manual | v.1.1, August 23, 2025 | 2.17 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  SBSM1360V step3d | 1.41 MB |
Power
Max Voltage
60
Braking Current
100
Max Amps per Channel
30
Continuous Amps per Channel
20
Power Connections
Molex
SBS
Brake Delay (s)
1
Braking PWM Duty Cycle (%)
100
Mechanical
Cooling
Conduction plate
Dimensions
(112.8mm x 65mm x30.8mm)
Weight
169g
