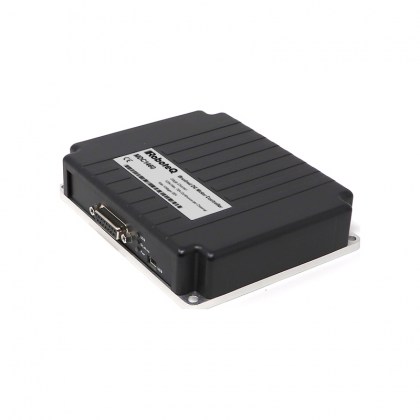

MDC1460
Availability: In Stock to 4 Weeks
Brushed DC Motor Controller, Single Channel, 1 x 120A, 60V, USB, CAN, 8 Dig/Ana IO, Cooling plate with ABS cover
$345.00
Status :
Active
Documentation
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  MDC1xxx Datasheet | v.1.4, updated September 12, 2022 | 552.9 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | Roboteq Controllers User Manual v2.1 | v.2.1, Mar 22, 2022
| 5.65 MB |
Files
| # | Name | Version | Size |
|---|---|---|---|
| 1 |  Roborun+ PC Utility | v2.1 December 22, 2020 | 34.78 MB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | MDC14XX Firmware | v.2.0, June 19, 2019 | 144.93 KB |
| # | Name | Version | Size |
|---|---|---|---|
| 1 | MDC1x-step3d | 107.42 KB |
Family
Motor Type
Brushed DC
Power
Design Generation
Gen3
Max Voltage
60
Number of Channels
1
Max Amps per Channel
120
Continuous Amps per Channel
70
Power Connections
Fast on
Communication
RS232
Yes
RS485
No
USB
Yes
CANbus
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
4
Max Digital Inputs
6
Max Digital Outputs
2
Max Pulse Inputs
5
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(120mm x 133mm x 25mm)
Weight
380g
