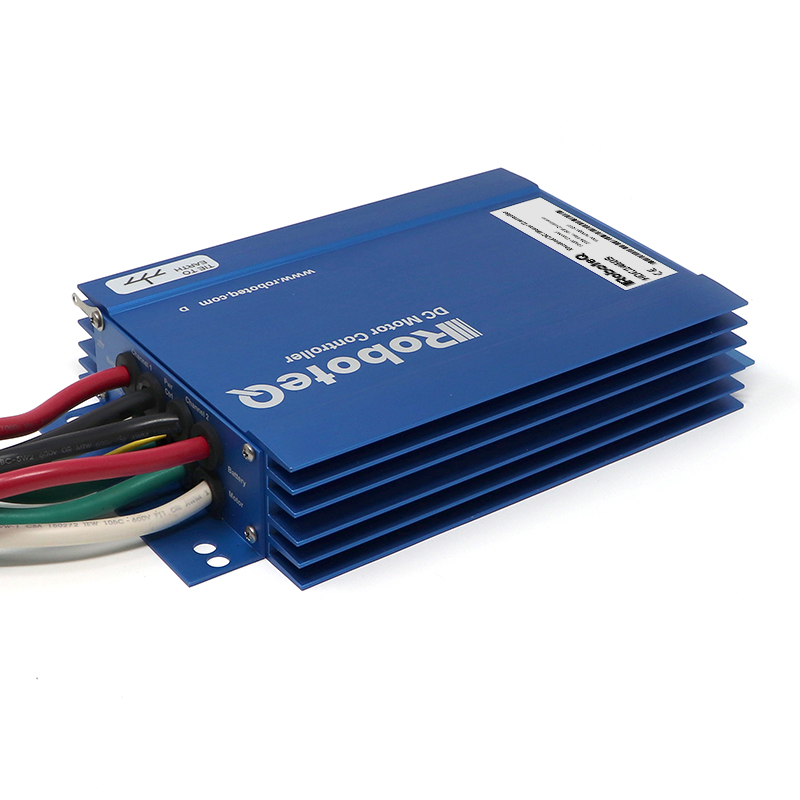

HDC2460S

Brushed DC Motor Controller, Single Channel, 1 x 300A, 60V, USB, CAN, 19 Dig/ Ana IO, Heatsink Enclosure

$595.00
Availability: In Stock

Documentation

#NameVersionSize
1HDC24xx Datasheet Locked by Bhavnish 7 months ago

v.1.1, updated July 31, 2019

631.4 KB
#NameVersionSize
1Roboteq Controllers User Manual v2.0

v.2.0, July 23, 2019

v 2.0, May 20, 2020 (Page number references changed on page 81)

6.01 MB

All Documentation

Files

#NameVersionSize
1Roborun+ PC Utility

v2.1 September 30, 2020

35.24 MB
#NameVersionSize
1HDC24XXS NORCB Firmware

v.2.0, June 19, 2019

169.58 KB
#NameVersionSize
1HDC2x-step3d3.66 MB

All Files

Family
Motor Type
Brushed DC
Power
Max Voltage
60
Number of Channels
1
Max Amps per Channel
300
Continuous Amps per Channel
160
Power Connections
Wires
Communication
RS232
Yes
RS485
No
USB
Yes
CANbus
Yes
Ethernet
No
Rotor Sensor
Encoder
Yes
Input/Outputs
Max Analog Inputs
11
Max Digital Inputs
19
Max Digital Outputs
8
Max Pulse Inputs
4
Functional Safety
Safe Torque Off (STO)
No
Mechanical
Cooling
Conduction plate
Dimensions
(228mm x 140mm x 40mm)
Weight
1500g
