AGV089A03G

Availability: In Stock

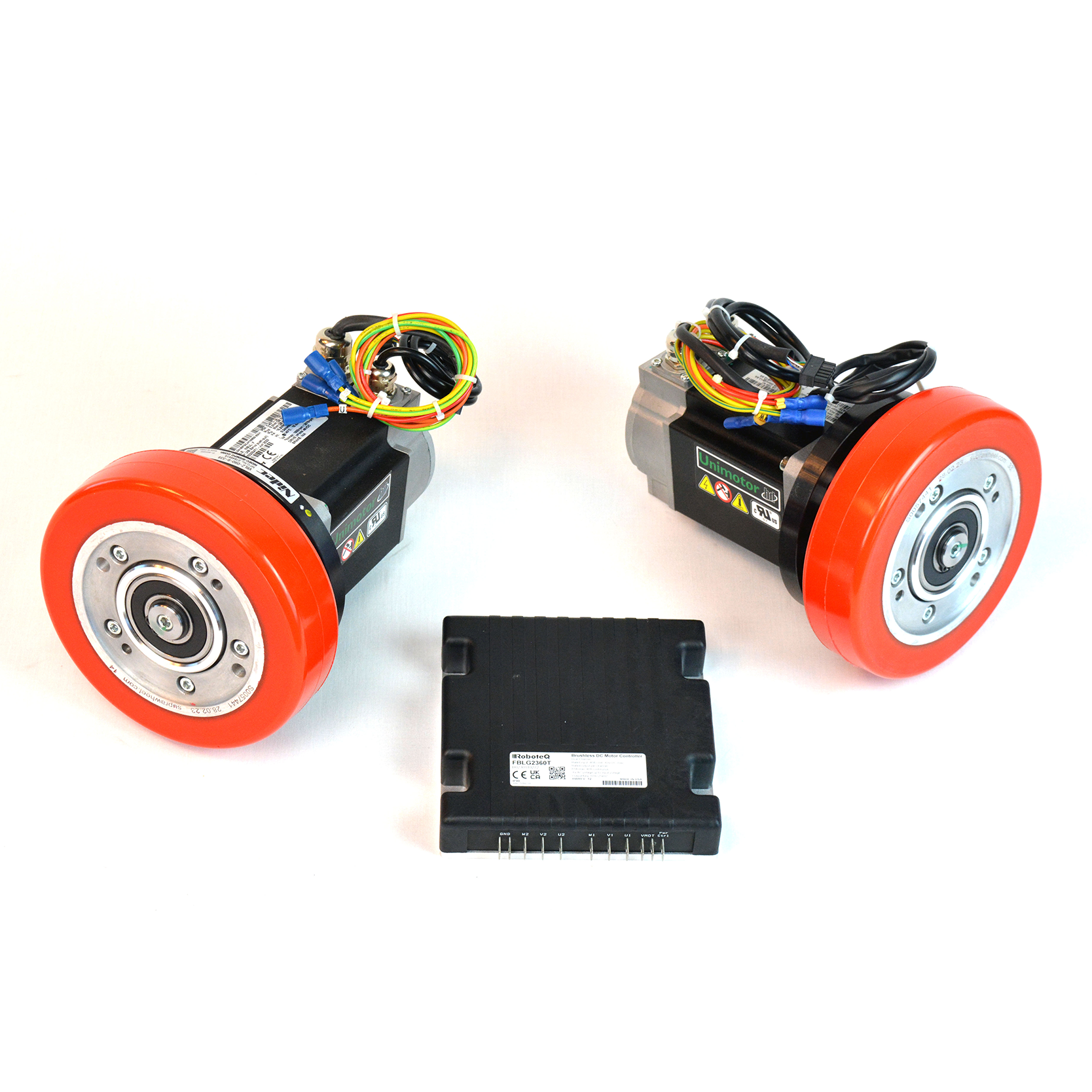

AGV kit including two 89mm 48V Frame Motors, Gearbox, and Wheel Assembly for 1000kg Mobile Robot up to 1500 RPM, without brake, with FBLG2360T motor controller.

$3,130.00
Availability: In Stock
Status :
Active

Documentation

#NameVersionSize
1FBLG23xx Datasheet

v.1.0, June 23, 2022

658.7 KB
#NameVersionSize
1AGV Kit Quick Start Guide367.95 KB
#NameVersionSize
1Roboteq Controllers User Manual v3.0

V3.0, July 10, 2022

8.67 MB
#NameVersionSize
1STO Certification Locked by centiva 2 months ago1.04 MB
#NameVersionSize
1089LDA150ROB Datasheet593.51 KB

Files

#NameVersionSize
1Roborun+ PC Utility v3.0beta

v3.0 Beta March 30, 2023

50.02 MB
#NameVersionSize
1FBL2x-step3d1.51 MB
#NameVersionSize
1089 Motor 3D Model No Brake962.67 KB
#NameVersionSize
1089LDA_UNbraked_SGV1_Step4.08 MB

All Files

Motor
Motor Frame Size
89
Motor Dimensions (WxHxL mm)
91x91x160.8
Max robot weight (kg)
1000
Brake
No
Max Motor Speed (RPM)
1500
Gear Ratio
9:1
Wheel diameter (mm)
156,4
Max Robot Speed (m/s)
6
Voltage (Vdc)
48
Nominal Amps (Arms)
15
Max Amps (Arms)
60
Torque at Motor (Nm)
3,2
Torque at Wheel (Nm)
29
Motor Shaft Encoder (PPR)
4096
Number of Pole Pairs
10
Assembly Weight (kg)
8.1
Communication
Ethernet
No
